Filters

 Cartridge and Sand Filters available.







Waterco Cartridge Filter





Trimline cartridge filters are compact, economical filters designed to effectively filter out suspended solids from your pool.


Trimline cartridge filters utilise a specially treated synthetic fabric
which is pleated into a cartridge. Cartridge filters are ideal for
applications where backwashing may not be practical.





Features & Benefits:



  • Air Relief Valve
  • Easy to read pressure gauge
  • Hand operated lid lock ring, allowing simple cartridge removal and replacement
  • Inbuilt airbleed - eliminates air build up in tank
  • High impact polypropolene body
  • Pleated filter cartridge
  • 40mm half unions



Warranty:



  • 10 year tank warranty & 1 year warranty on components

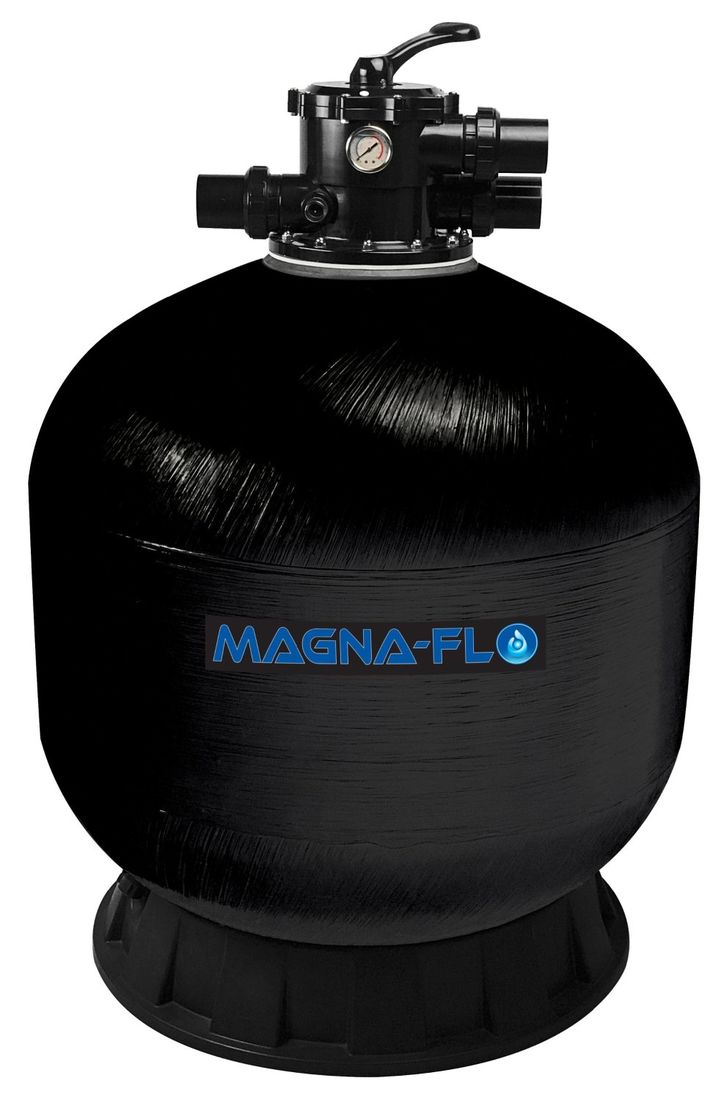

Magna-Flo Media Filter



Magna-Flo media filters have been manufactured by long lasting and non-corrosive fibreglass and resin, with bobbin wound automatic technology and UV resistance composites.

The unrivaled design allows the production of a filter that is ageless in maintaining high performance, while extremely robust and reliable.



Features & Benefits:



Robust - Chemically resistant fibreglass construction allows installation in different environmental conditions.

Top Performance - Balanced internal hydraulic design maintains an even flow through the media bed producing maximum filtration performance.



Warranty:



10 Years on tank

1 Year on MPV valve, tank internals & pressure gauge





Specifications 21 Inch 25 Inch 28 Inch 32 Inch
Sand Media Requirement 60kg 120kg 180kg 320kg
Glass Media Requirement 45kg 105kg 135kg 240kg
Filter Height 845mm 950mm 1020mm 1200mm
Filter Diameter 535mm 635mm 710mm 800mm
Correct Size Pump 0.75hp 1.0hp 1.25hp / 1.5hp 2.0hp
